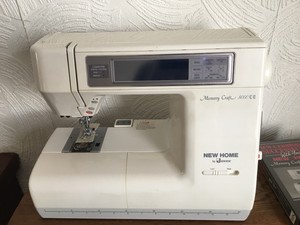

If you do not see your machine on this list please check in Retired Machines.If your machine is not listed there we do not have a copy of the manual. Janome Memory Craft 9000 Sewing Machine Service Repair Manual Parts List 0 results. You may also like.

• ********* SERVICE MANUAL **********. • CONTENTS Top cover & face plate attaching and removing.1 Base & bed cover attaching and removing.. 2 Belt cover attaching and removing..3 Front panel attaching and removing.. 4 To adjust the presser bar height..5 To adjust the needle drop.. • Top cover & face plate attaching and removing TOP COVER (Y) (TO REMOVE) 1.

Windows Messenger add-in to notify about new mail in Exchange server mailbox. ExAlert is an add-in for Windows Messenger designed to inform a user about new messages received in his/her mailbox on the Microsoft Exchange 2000 server. ExAlert works together. Turboveg for windows free download windows 10. Turboveg For Windows. EmEditor is a free text editor for Windows that fully supports. Downloads and more. Platforms: Windows 95, Windows 98, Windows Me. The scale selected may differ from the one used for the original data, giving the opportunity to switch from one scale to another (which can result in loosing information on the cover abundance of the species). Turboveg for Windows checks if the cover values are in congruence with the cover abundance scale.

Remove 3 screws (A & B) and top cover. (TO ATTACH) 2. Attached the top cover with 3 screws (A and B). FACEPLATE (Z) (TO REMOVE) 3. • Base & bed cover attaching and removing BASE (Y) (TO REMOVE) 1.

Remove 6 screws (A) and base. (TO ATTACH) 2.

Attach the base with 6 screws (A). BED COVER (Z) (TO REMOVE) 3. Move the drop lever to the left, then remove 2 screws (B). • Belt cover attaching and removing (TO REMOVE) 1. Remove 2 screws (A) and belt cover (Y), then pull out. (TO ATTACH) 2.

Attach the belt cover (Y) with 2 screws (A). • Front panel attaching and removing (TO REMOVE) 1. Remove the top cover, belt cover and bed cover (See pages 1, 2 and 3). Remove screw A and loose screws (B, C, D, E, F and G). Pull out connectors (H) and remove the front panel. (TO ATTACH) 4.

• To adjust the presser bar height The standard presser bar height is 6.0 mm between the bottom surface of the foot (A) and needle plate(B) when the presser bar (C) lifter is lifted. Open the face plate. Raise the presser foot, loosen the presser bar bracket screw (D) and adjust the height to 6.0 mm. • To adjust the needle drop When you select the pattern 01 (straight stitch on center needle position), the needle drop should be in the center position of the needle hole in the needle plate.

When the needle swings in maximum zigzag width, the distance between both edges of the needle hole on the needle plate and the needle drop position should be equal as shown below (*** C ***). • To adjust the needle bar height The standard distance between the upper edge of the needle eye (A) and the tip of shook should be in the range of 1.6 to 2.0 mm when the tip of hook meets the right side of the needle (B) in ascending travel of needle from its left and lowest position. • To adjust the hook timing When the straight stitch at left needle position is selected, the amount of ascending travel of the needle bar from its lowest position (A) to the position where the tip of the rotary hook ex- actly meets the right side of the needle (B) should be 3.25 to 3.55 mm.

• To adjust the clearance between the needle and the hook The clearance between needle and hook should be - 0.10 to + 0.05 mm (G). If not, make an adjustment as follows: 1. Idealshare videogo 6 keygen 10. Remove the needle plate and bobbin holder.

• To adjust the backlash of hook drive gear and lower shaft gear The backlash of gears should be smooth and should be less than 0.8 mm when the tip of hook (E) is within the width of the feed dog (C) as shown below. • To adjust the feed dog height When pressure adjusting lever (C) is at “3” and the presser foot (D) is lowered, the highest position of the feed dog (E) should be 0.80 to 0.90 mm (H) from the surface of the needle plate (F). • To adjust the upper shaft shield plate position When the machine is set for zigzag stitching, the needle should start to swing 6.3 mm to 7.5 mm (G) above the surface of the needle plate (C). Remove top cover. • To adjust the upper thread tension The upper thread tension should be 65 g - 95 g when pulling the thread (cotton thread size 50) in direction C with setting the tension dial at” 3 (Make sure the foot is lowered.) 1. • To adjust the stretch feed balance When the triple straight stitch is sewn with the feed balancing dial (C) at the standard setting mark (G, the forward feed (A) and reverse feed (B) should be same length. Set the triple straight stitch and the feed balancing dial at standard setting mark (G).

• To replace and adjust the threader plate If the needle threader plate is broken or bent, replace it as follows: (TO REPLACE) 1. Turn the balance wheel toward you until the needle bar reaches its highest position and lower the needle threader knob (D) as far as it will go.
